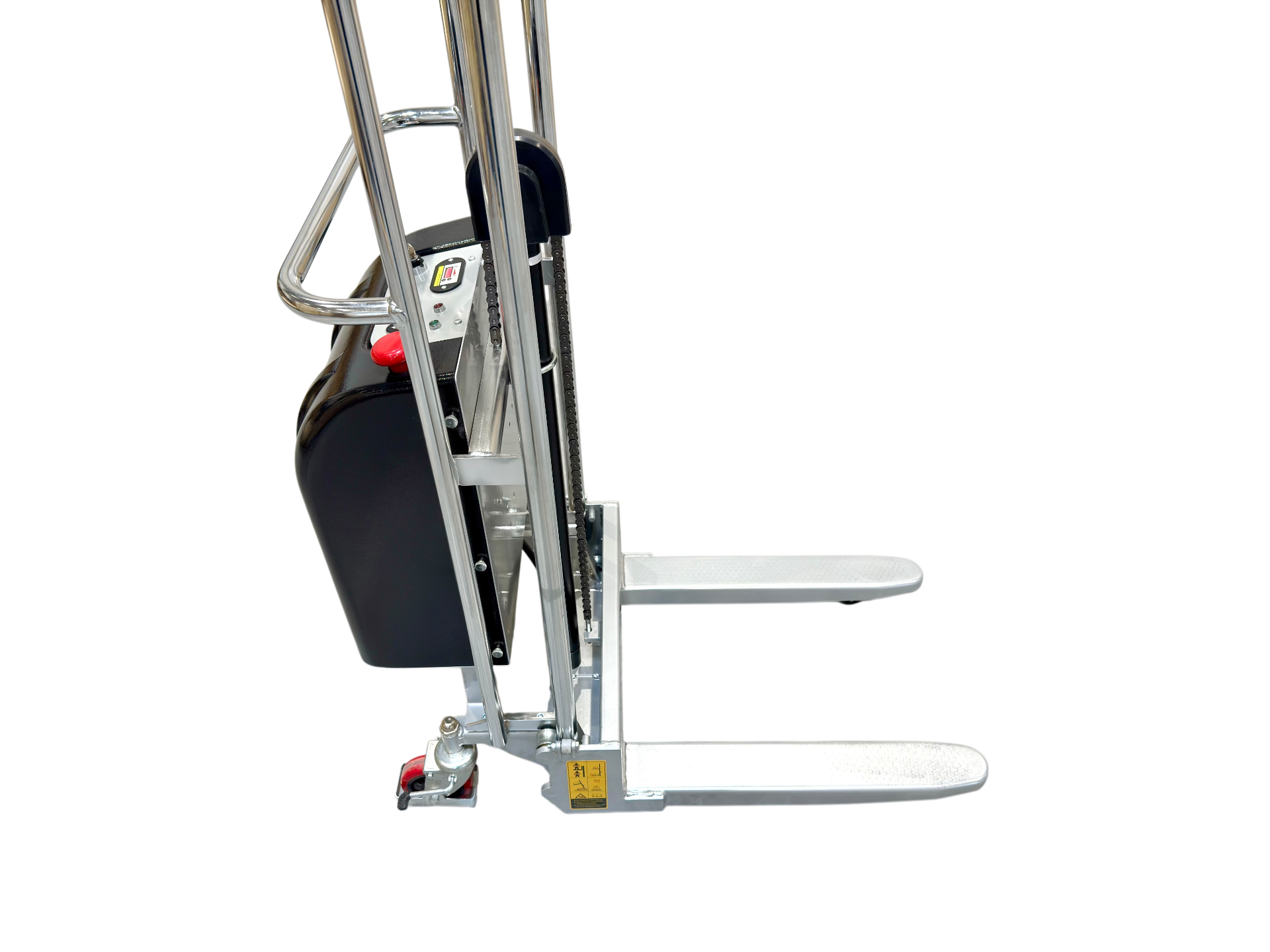

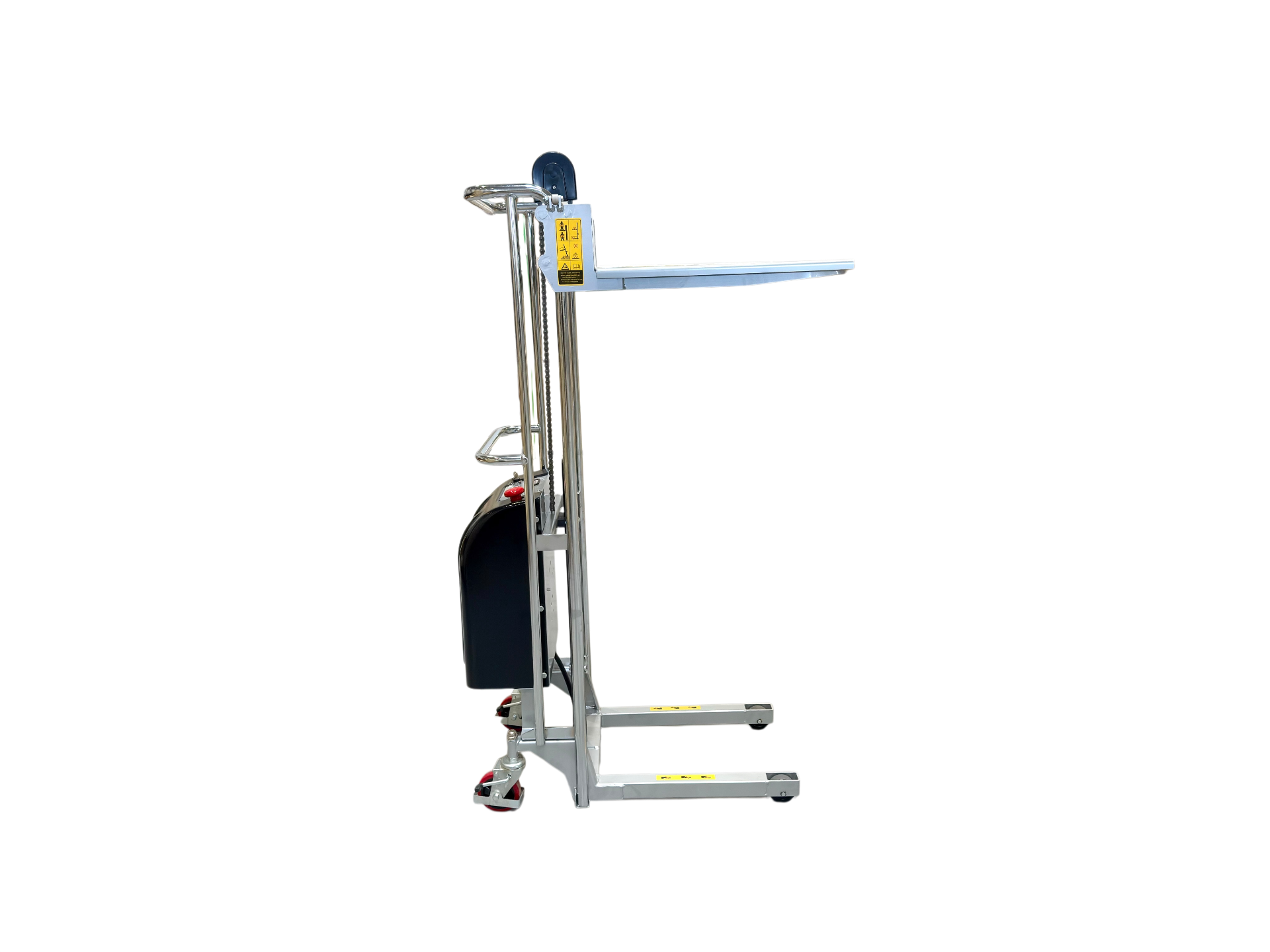

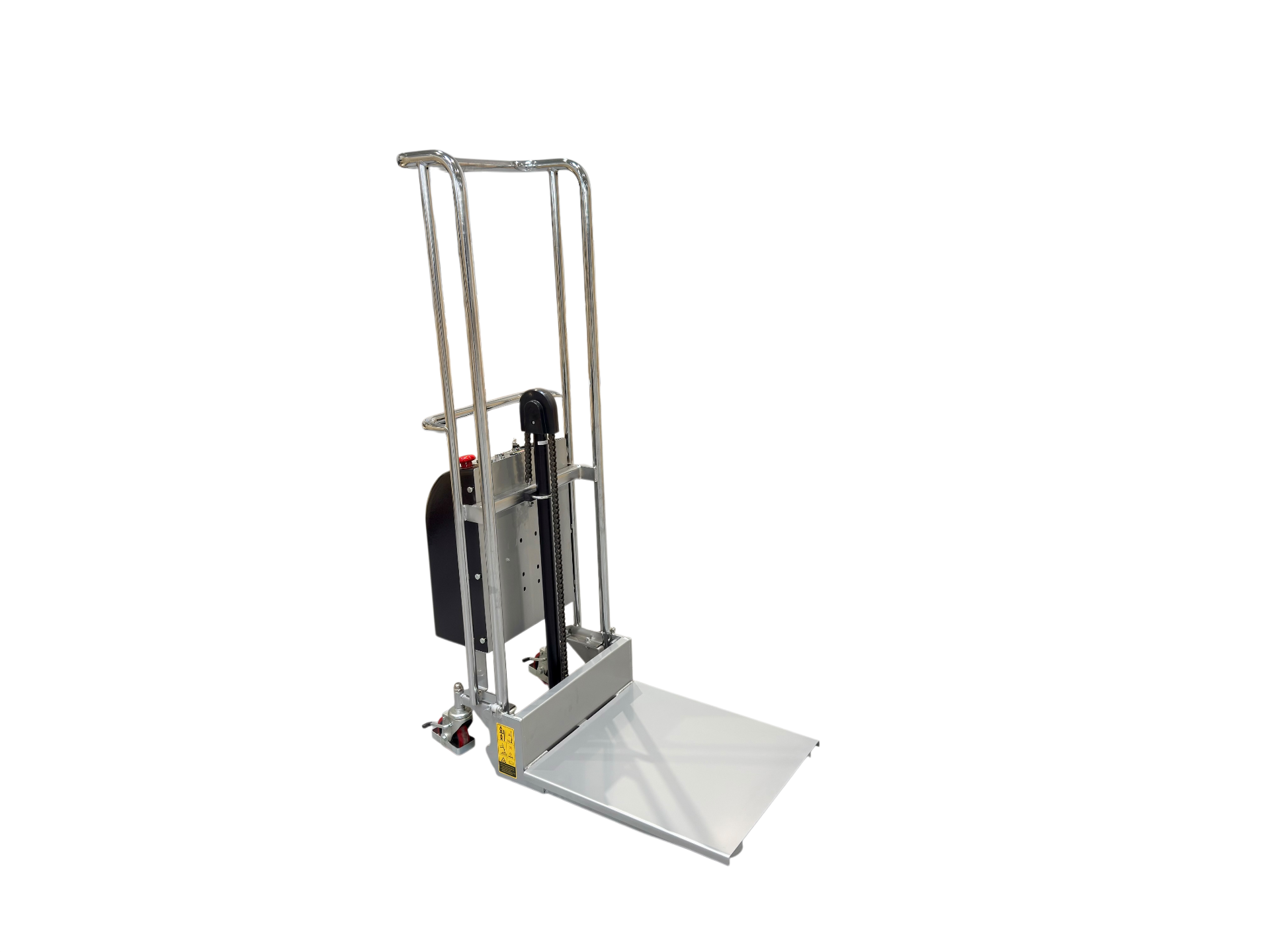

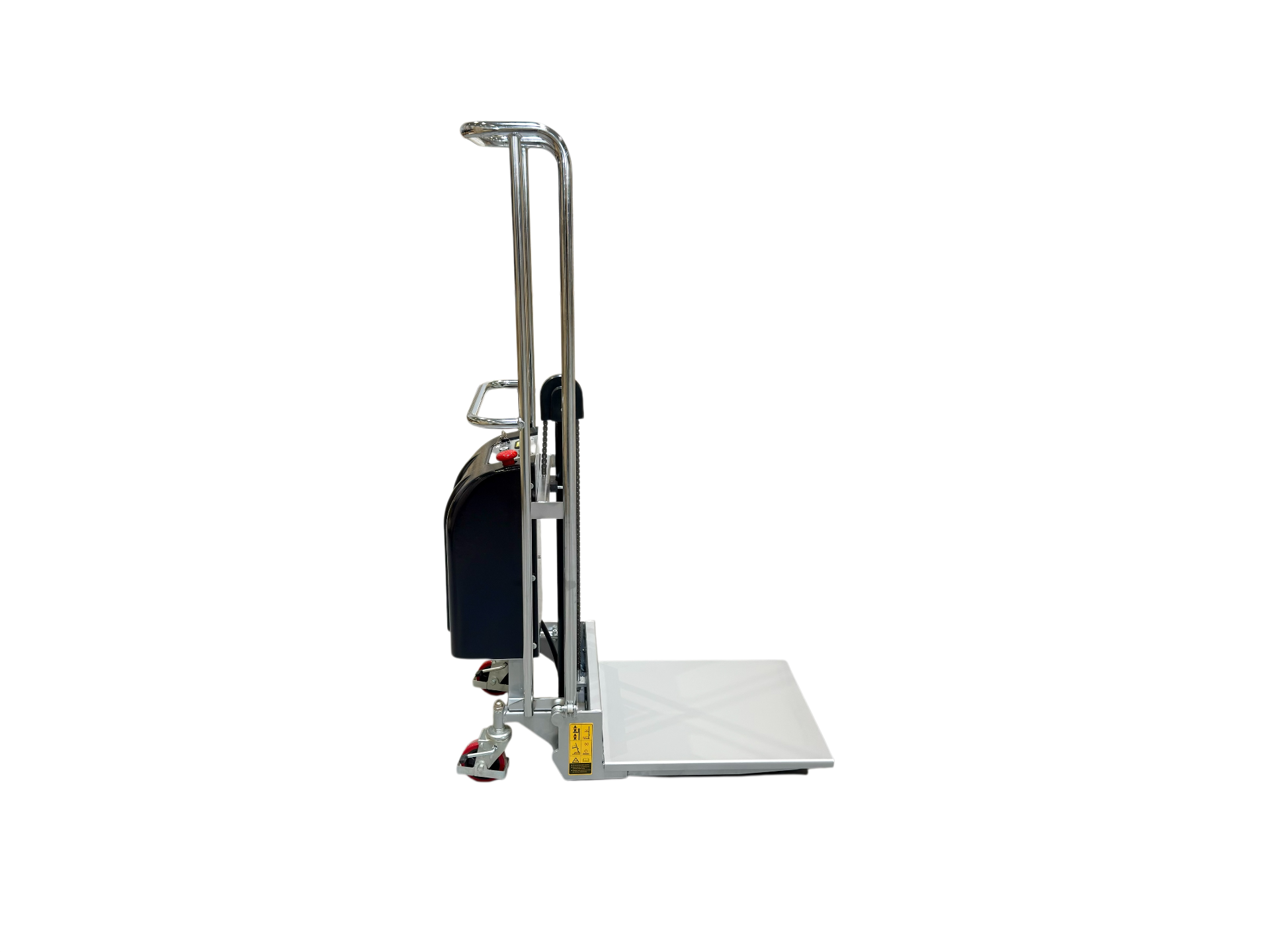

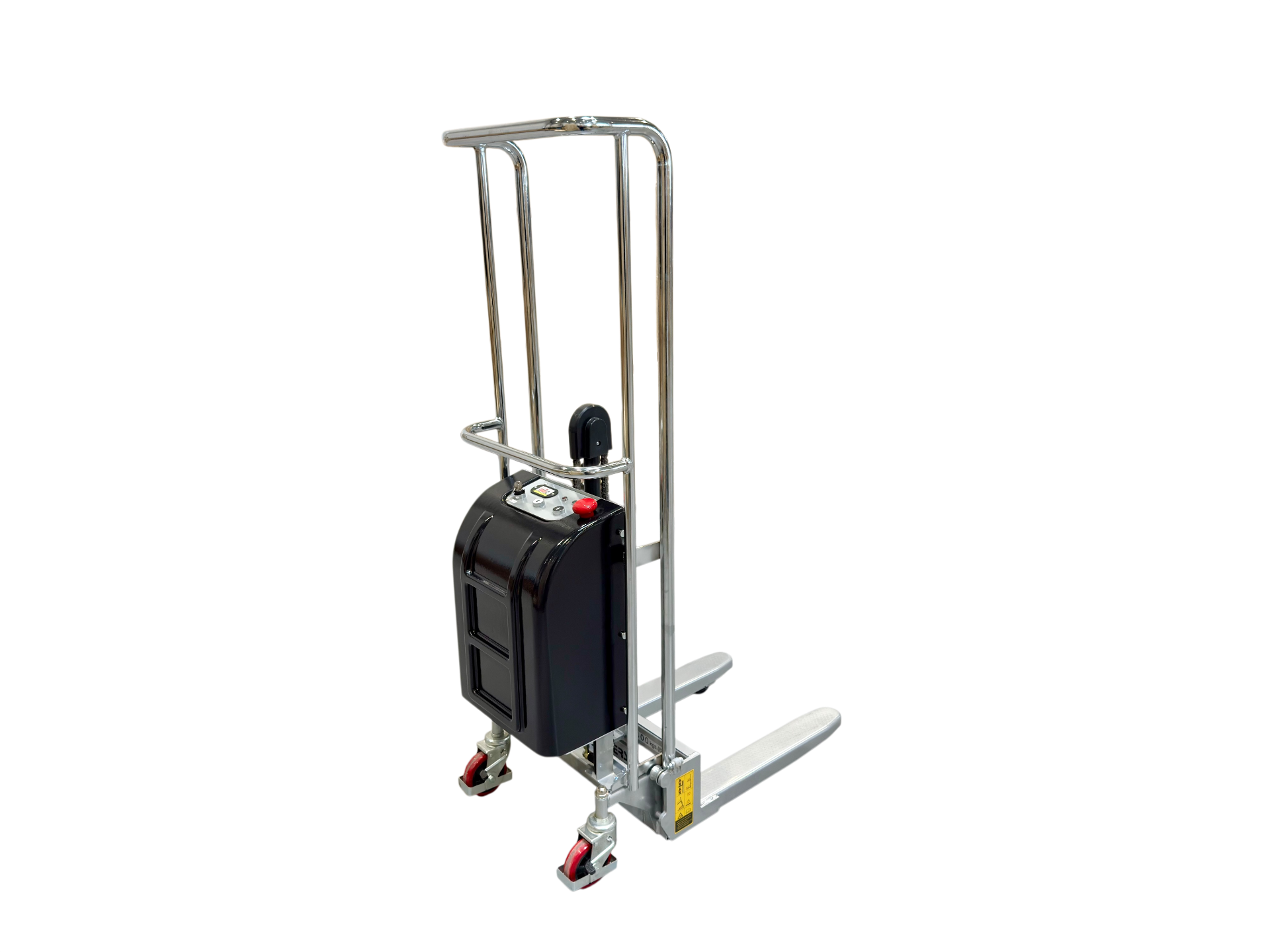

The stacker is equipped with both fixed forks and a
lose, chromed platform for multipurpose use. You can handle half size
pallets and/or use it as a mobile lifting table.
- Capacity 400kg
- Lifting height 80-1500mm

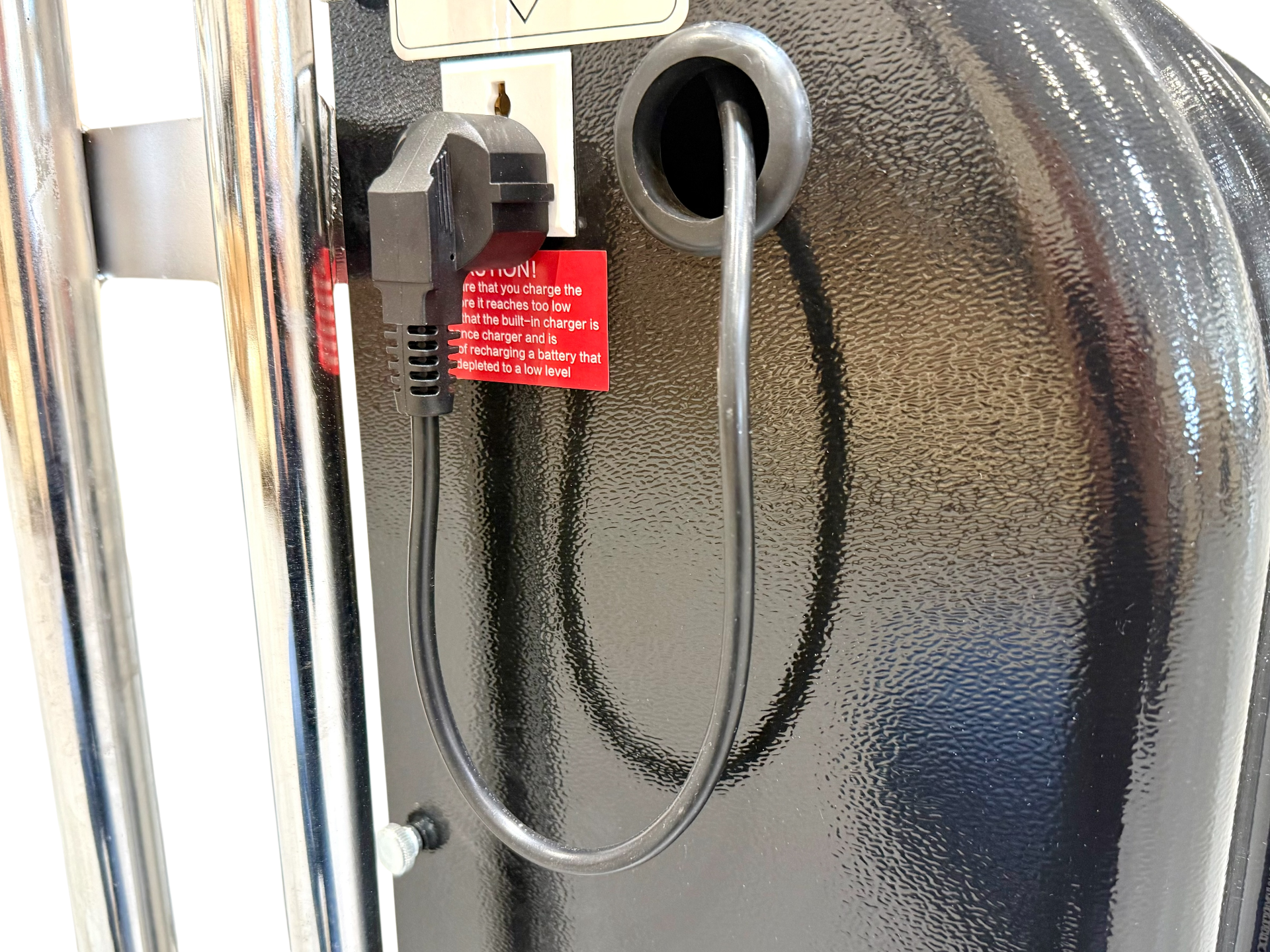

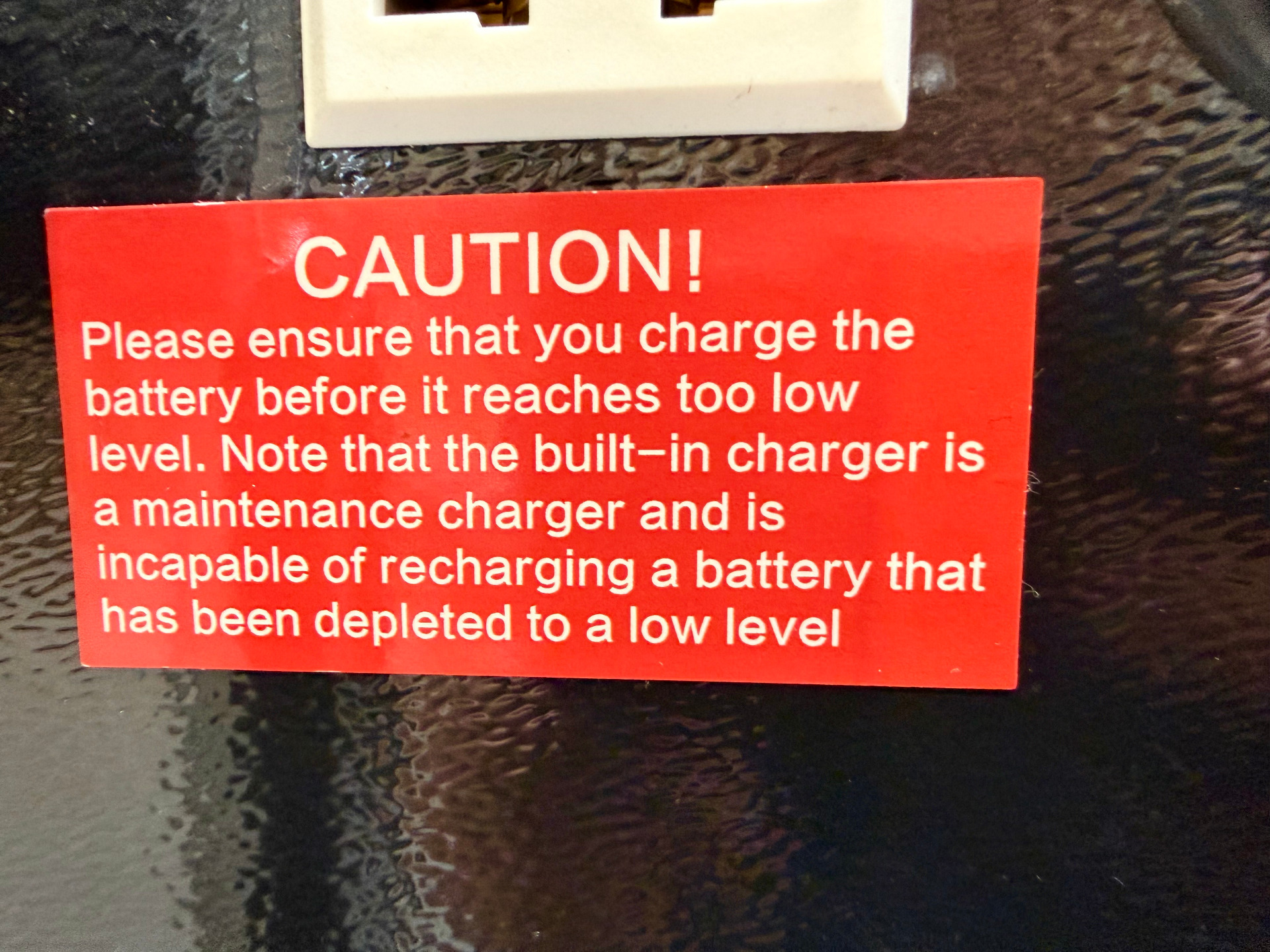

- Built-in charger
- Type
Electric pump
- Load center
300
mm
- Dimensions (LxWxH)
1100x580x1720
mm
- Fork length (mm)
650
- Width between forks
350
mm
- Fork width, total/fork (mm) 550/100
- Weight (kg)
145
- Steering wheel
125x35/75x20
- Fork wheel
Ø150
- Turning radius
850
mm
- Battery (V/Ah)
74/12
- Inner measure between supporting legs
370 mm
- Lifting speed (mm/s)
60

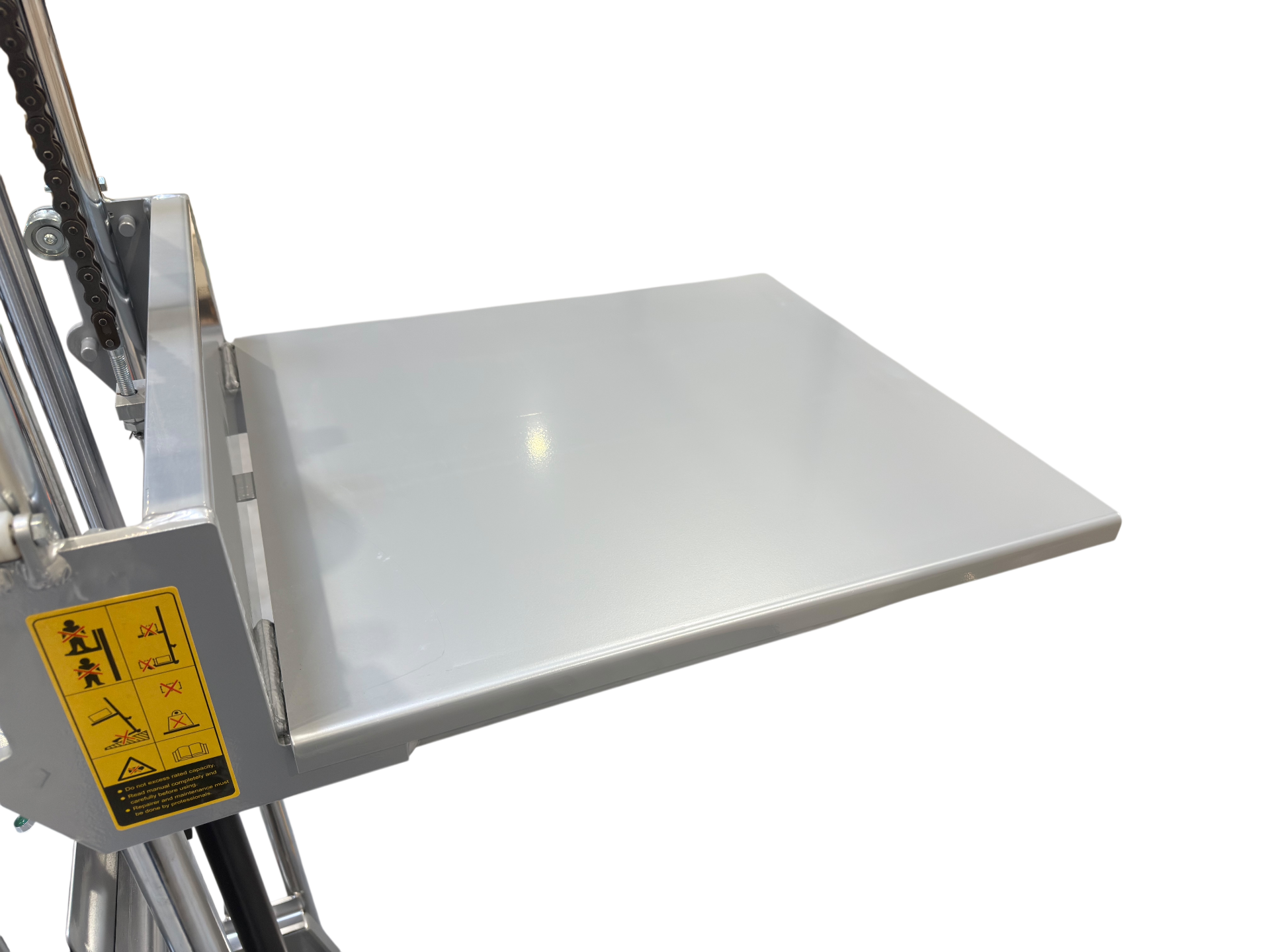

- Platform (LxW)
650x580
mm
- Measure from floor to upper parts of supporting leg
75
mm
- Inner measure between forks
350
mm
- Dimensions (LxWxH)
1100x580x1720 mm
