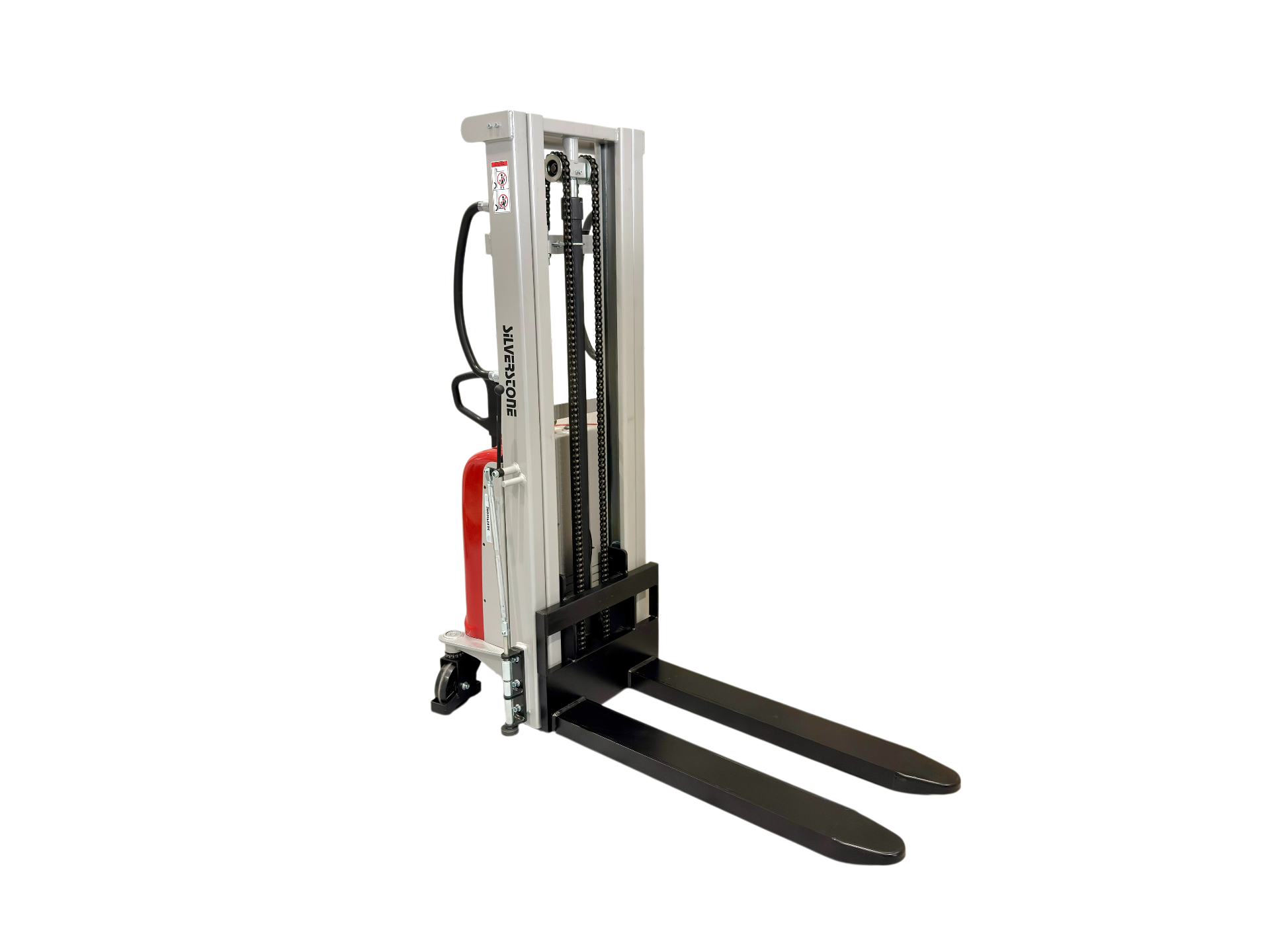

Semi-electric stacker suited for intensive handling and
continuous lifting. Compact design ensures a small turning radius. Fast
lifting/lowering speeds. Easy and smooth steering makes the stacker safe and easy to
operate. Service-friendly assembly of hydraulics, electrics and
batteries. Large battery, 150Ah/12V, for many working hours per
charging. The perfect choice for high productivity requirements in confined spaces.
- Capacity 1000kg
- Lifting height 85-2700mm
- Built-in charger
- Load center
600 mm
- Outer dimensions
1660x800x1920
mm
- Outer fork width
540 mm
- Weight (kg)
460
- Steering wheel
Ø180x50
- Fork wheel
Ø74x70
- Turning radius
1350 mm
- Lowering speed, load/no load
190-400
- Lift motor (kW)
1,6
- Height with mast in highest position
3355
mm
- Fork dimensions (LxWxH)
1150x160x50 mm
- Battery (V/Ah)
2x12/75
- Battery type
Maintenance free
- Lifting speed (mm/s)
130-80
- Lifting mast
Duplex 2-stage
